RACCORD KIT HYDRATATION PILOTE - RCM 530
  • RACCORD KIT HYDRATATION PILOTE - RCM 530
  • RACCORD KIT HYDRATATION PILOTE - RCM 530

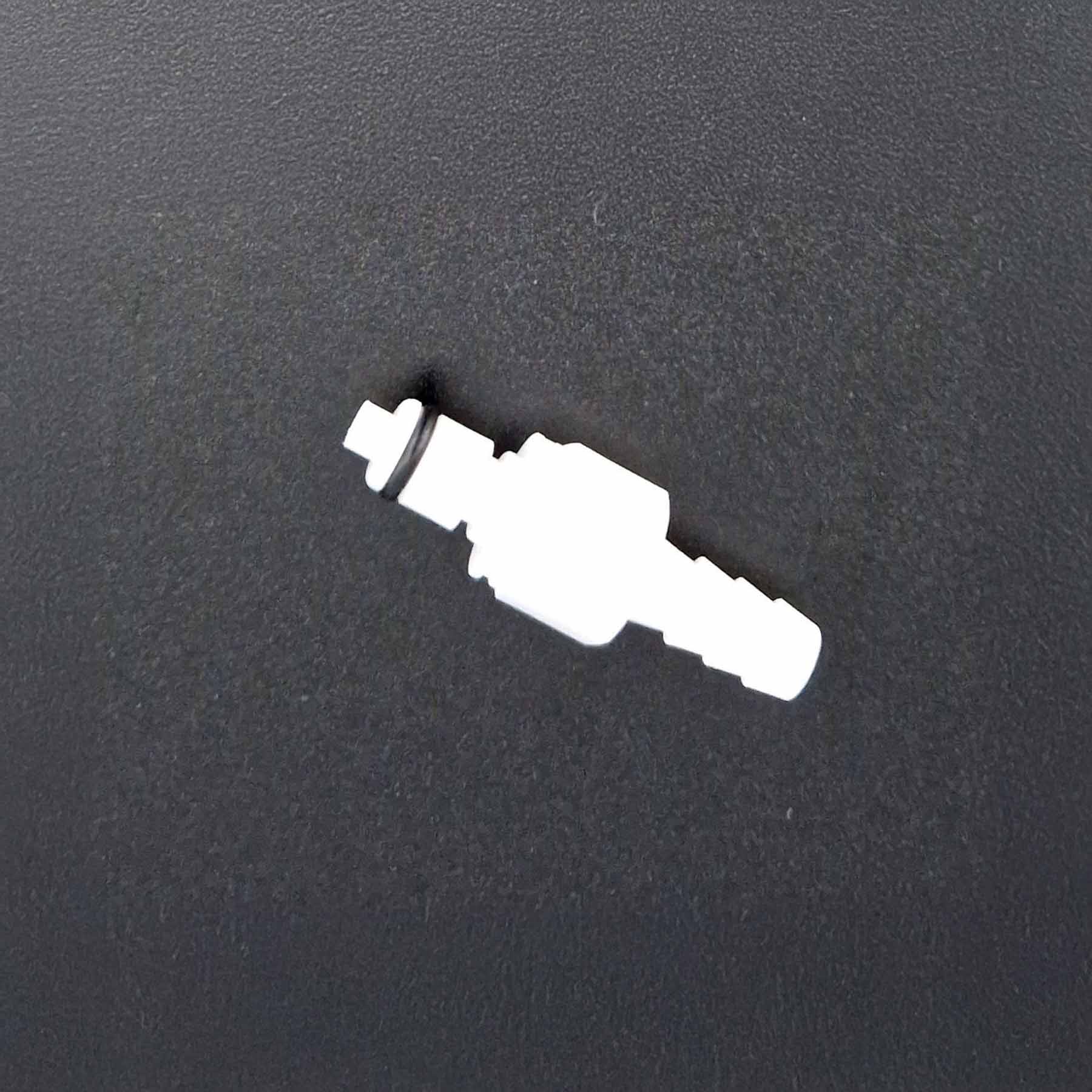

EXTREM DRINK MALE SEALED CONNECTOR - PILOT HYDRATION KIT CONNECTOR - RCM 530

EXTREM DRINK MALE SEALED CONNECTOR - PILOT HYDRATION KIT CONNECTOR - RCM 530

€21,90 EUR
DESCRIPTION

An essential for the reliability of your racing drink system

This male-type pilot hydration kit component (RCM 530) is a high-precision technical part. This sealed male drink connector fits directly into the yellow connector located on the helmet side of the Extrem Drink helmet kit. It is equipped with a non-return valve and allows for instantaneous connection and disconnection without liquid loss. It is the ideal solution for racing teams and especially for pilots requiring a flawless pilot hydration kit to perform during their automotive competitions or simulator sessions.

  • Robust design:
    Manufacturing adapted for the intense vibrations of competition.
  • Total sealing:
    Component compatible with the CAR HYDRATION KIT CONNECTOR - RCF – 540, which features a quick and secure connection for simplified handling.
  • Performance & Flow:
    Suitable for the large-diameter Extrem Drink connection tube.

Further information: For additional explanations, see the tabs below.
INFORMATION PRODUIT

Information on the high-performance driver hydration kit connector


More than just a simple connector, this Extrem Drink driver hydration kit fitting is designed to handle drink flows in extreme conditions. Its robust and high-resistance design ensures maximum longevity, even when subjected to extreme vibrations on the track or rapid handling during pit stops.
It is a quality component that facilitates connections and disconnections during driver changes.

  • Technology:
    Non-return valve guaranteeing the presence of drink at every request.
  • Compatibility:
    Optimized for the CAR HYDRATION KIT CONNECTOR - RCF – 540.
  • Material:
    High-resistance food-grade Acetal composite.

Kit contents:

  • 1 x 1/4 male connector with non-return valve, adapted to the large-diameter Drink connection tube.

A bespoke service for specific needs is at your disposal; please do not hesitate to contact us.
MODE D'EMPLOI

Installing the sealed male drink connector


This connector for the Extrem Drink hydration system replaces the original part located in the yellow connector on the driver's helmet.

  • Disassembly:
    Disassemble the Double Plug Drink Helmet connector - DPC-410 by removing the 3 assembly screws.
  • Replacement:
    Remove the used male connector, detach the flexible tubing, and install the new connector by inserting the connection hose onto the ribbed barb. For a total and secure seal, it is mandatory to secure the tube with a Rilsan-type cable tie.
  • Reassembly:
    Position the connector in its slot within the Double Plug Drink Car DPV 420, then close the two halves of the yellow connector using the 3 screws, taking care to properly position the radio connector if present.
  • Testing:
    Perform a connection and disconnection test with the female connector to validate the proper functioning of the mechanism, as well as the radio link for the double plug version.

Maintenance: Like any automotive equipment part, we recommend periodic cleaning by circulating clean water to flush out residues, thus ensuring a smooth connection session after session. For rally-raid, we also recommend regular cleaning with clean water to remove dust from the assembly.

The manufacturing time of our products is controlled.
In case of stock shortage or if you need a quantity greater than that usually available on the site, please contact us.
