Exhaust probe welding connection - RSE-940

Exhaust probe welding connection - RSE-940

€15,90 EUR

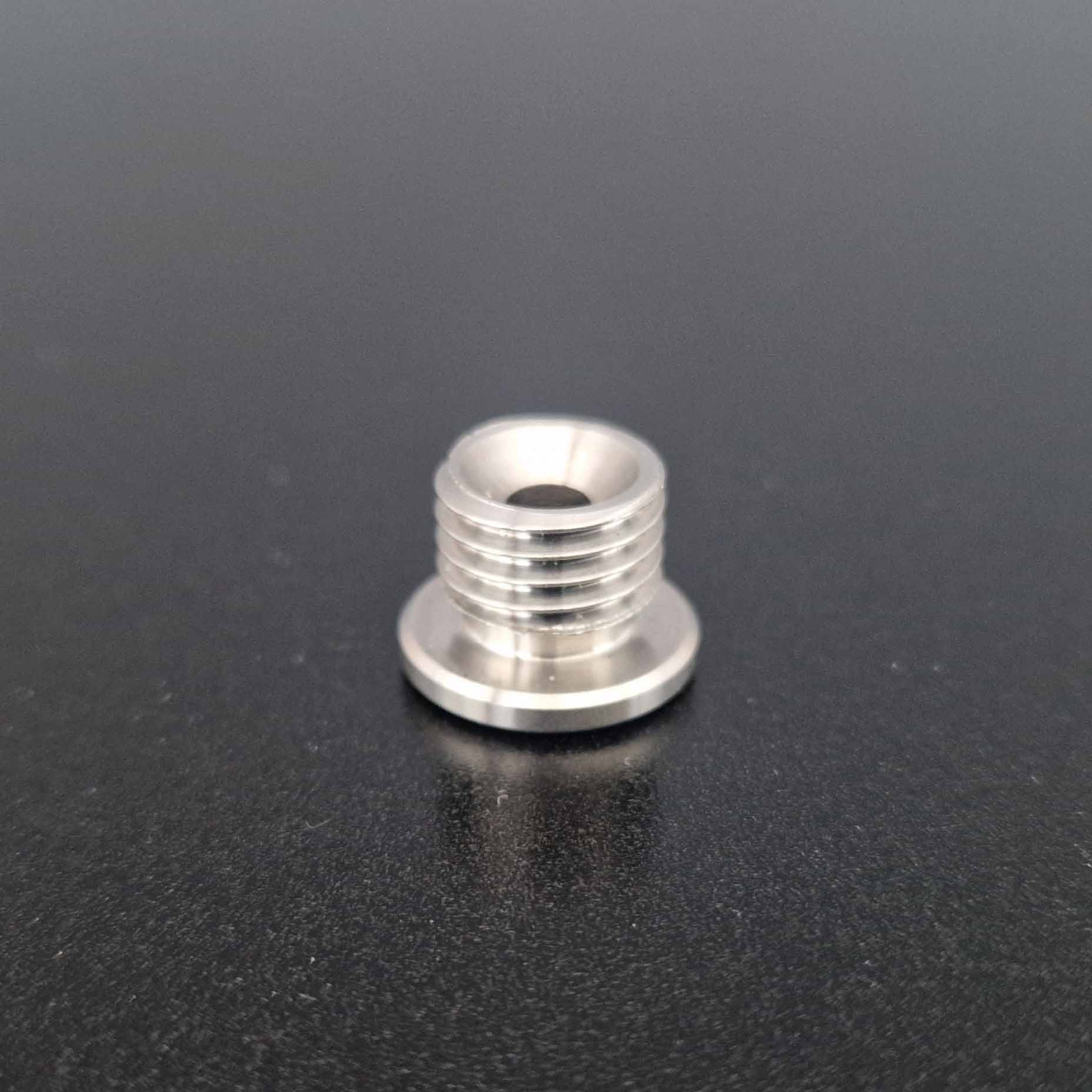

M12x150 threaded union with sealing cone for screwing the AIM sensor allowing the control of the exhaust temperature of your kart.

For further explanation see the tabs below.
PRODUCT INFORMATION

Stainless steel fitting, to be welded onto the upper part of your kart's exhaust, at the regulatory distance from the entry.

The base of the fitting is calibrated in thickness to allow for slight grinding to match the radius of your exhaust pipe and facilitate welding.

Understand :
- 1 stainless steel union to be welded.

Weight: 10 g
DIRECTIONS FOR USE

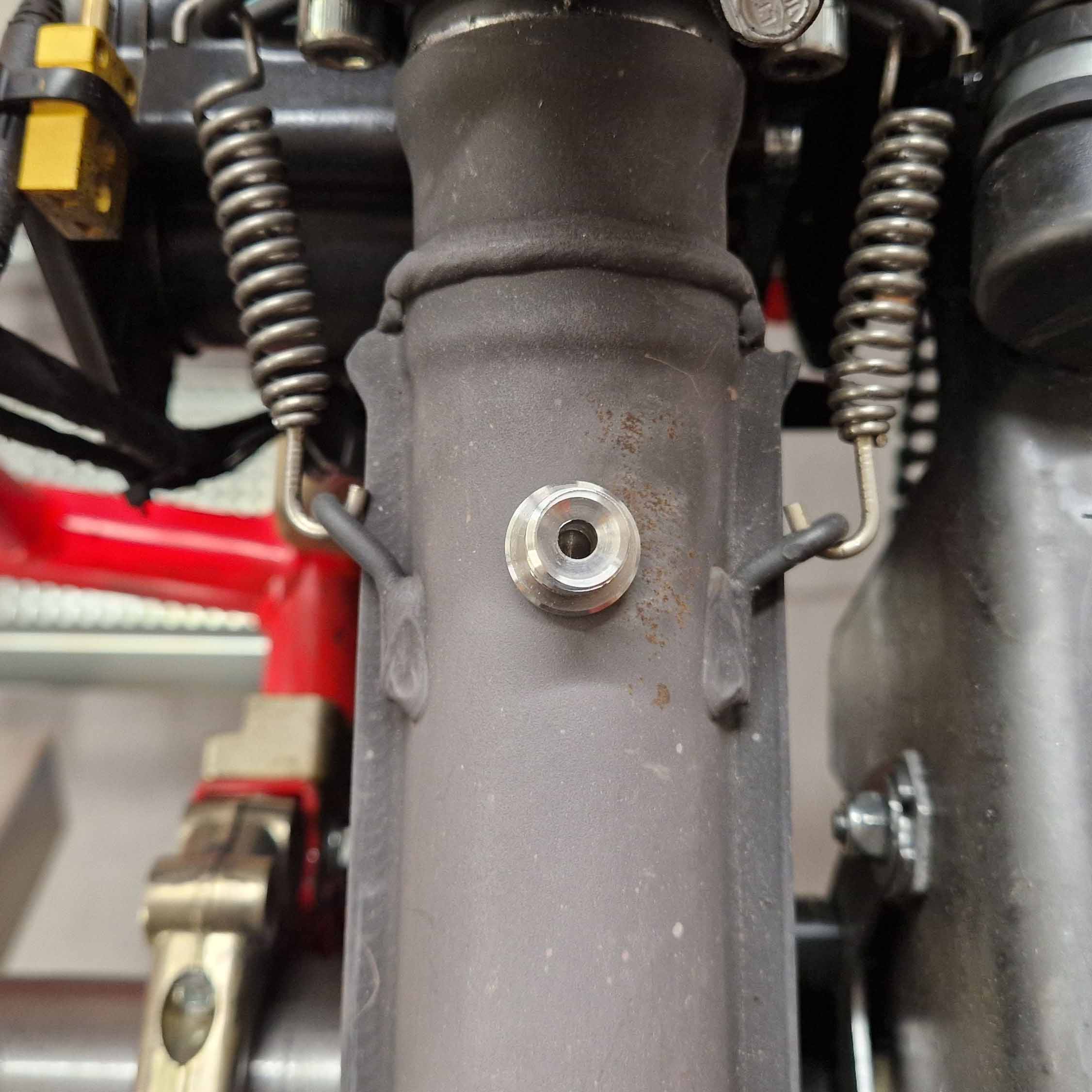

Grind the surface of your exhaust pipe where the weld connection will be positioned in order to have the metal bare (upper part of the tube in order to obtain the max T° reading).
Adjust the contact surfaces on the fitting side or make a slight flat on the exhaust tube with a hammer and a piece of the same diameter as the fitting.

Degrease the elements for perfect welding.

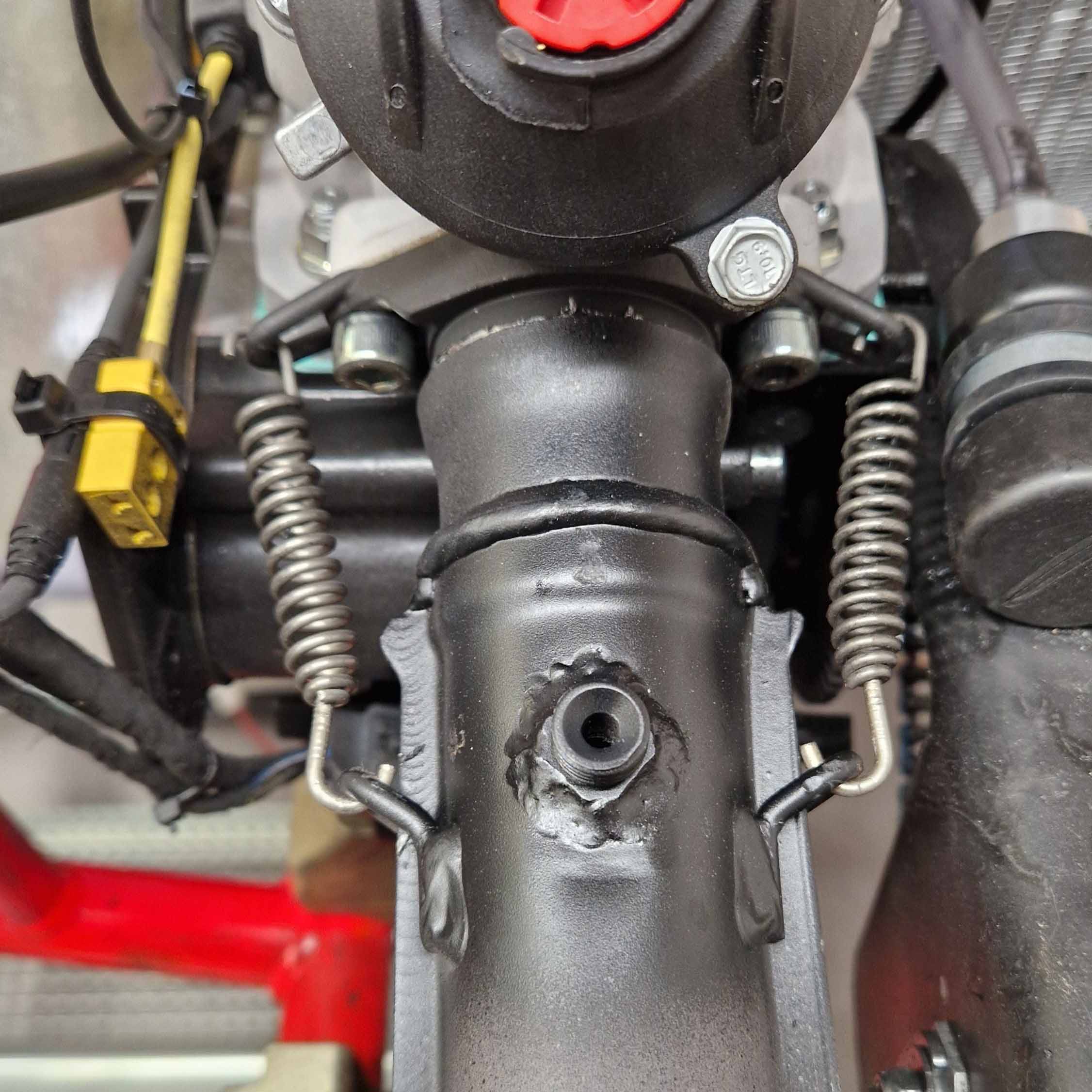

Weld the connection and only then drill the hole in the exhaust pipe,
Deburr the hole on the inside of the tube.

Protect the whole thing with high temperature paint.

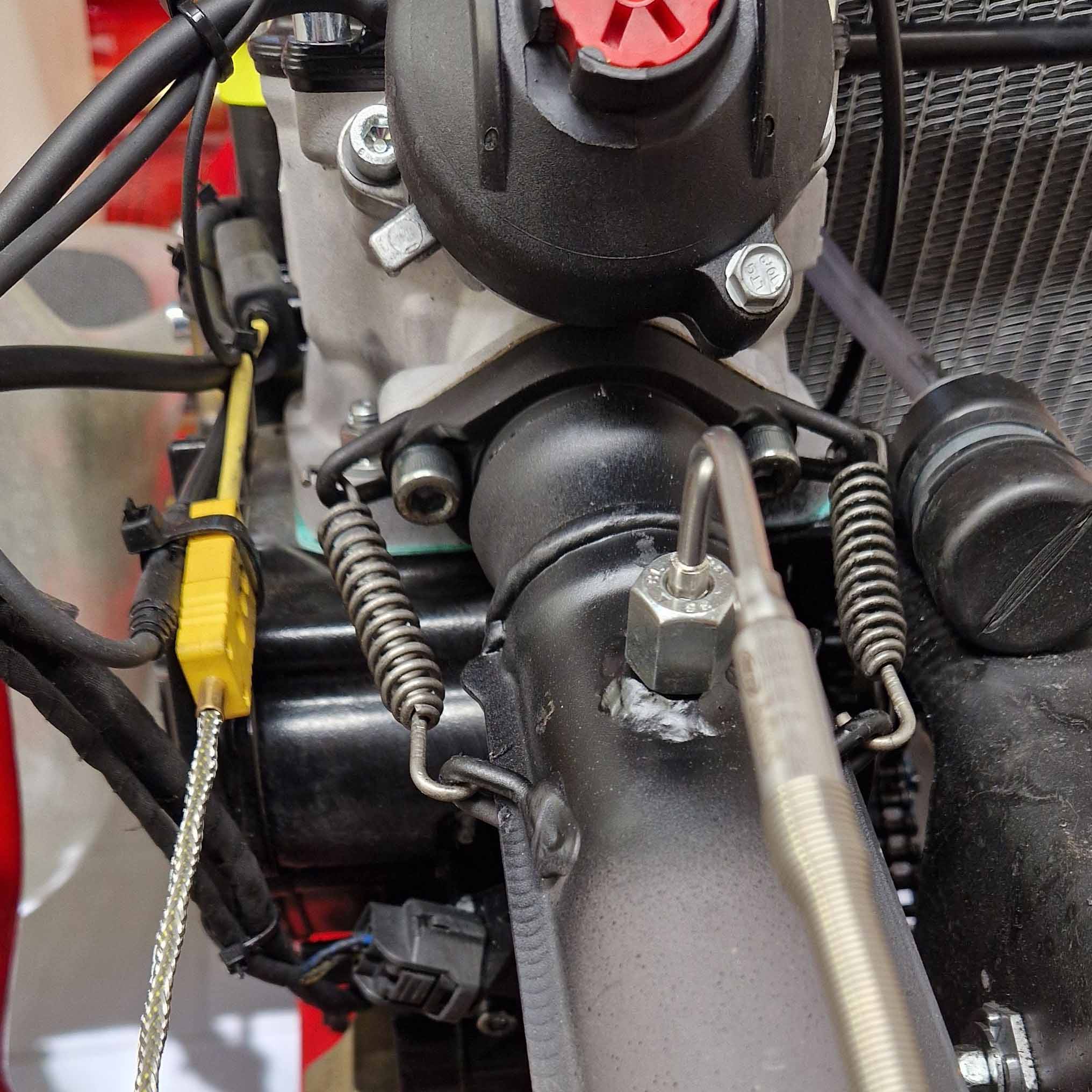

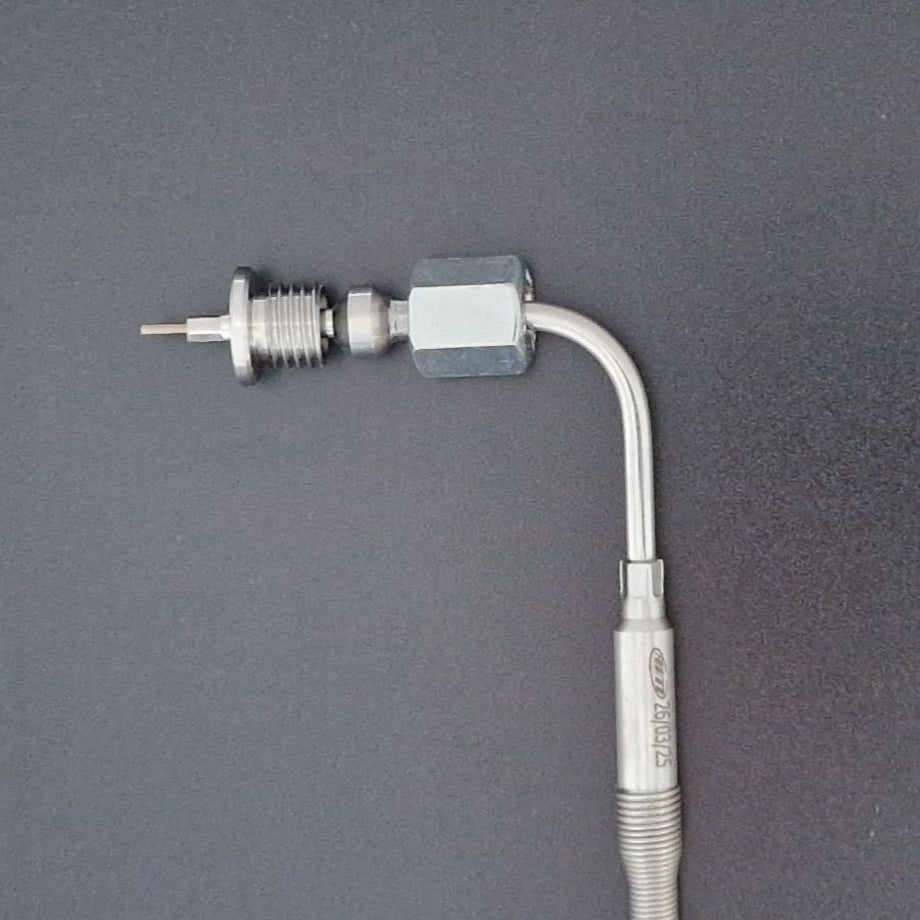

Carefully mount the probe and tighten firmly, taking care to orient the rigid part of the probe cable.

The manufacturing time of our products is controlled.
In case of stock shortage or if you need a quantity greater than that usually available on the site, please contact us.
