CIE-460 - Extrem Motorsport Drink Mount Interface Shim

CIE-460 - Extrem Motorsport Drink Mount Interface Shim

€29,00 EUR
DESCRIPTION

38mm Interface Spacer for Extrem Motorsport Drink Mount

An adjustment component for the Extrem Drink system cokpit connection, the CIE-460 interface spacer is used to raise single or double plug Extrem Drink mounts. It is used either to optimize positioning on a dashboard or to fill a gap in a carbon profile of your race car.

The standard height is 38 mm, but we can meet any design or height requirement through our custom service; please do not hesitate to contact us.

  • Compatibility:
    Fits single and double plug Extrem Drink mounts.
  • Custom:
    Height and design customizable according to your installation constraints.
  • Lightweight:
    Only 45 grams, without compromising durability for competition.
  • Reliability:
    Made of industrial ABS (Stratasys) and securely fastened with 4 screws.

For more technical details, please consult the detailed tabs below.
INFORMATION PRODUIT

Technical Datasheet - Drink Base Interface Spacer

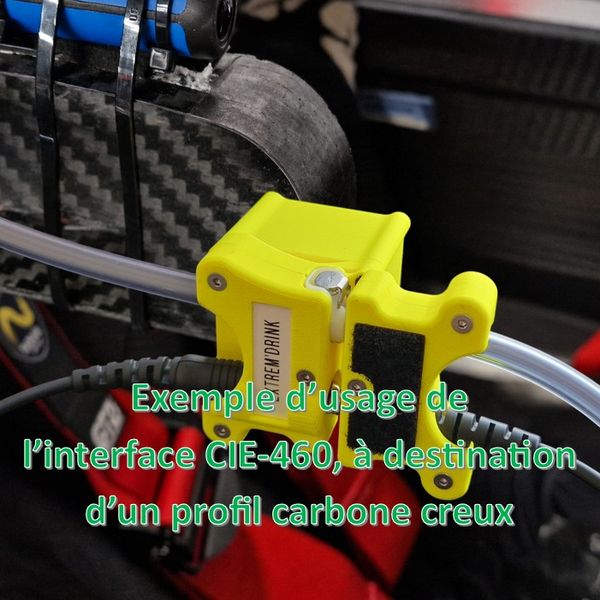

Specifically developed to raise and adjust the positioning of Extrem Drink bases, this CIE-460 interface spacer installs equally well on a dashboard or within a race car carbon profile.

  • Weight:
    45 grams for the 38mm CIE-460 interface
  • Height:
    38 mm standard, custom height available upon request.

Kit Contents

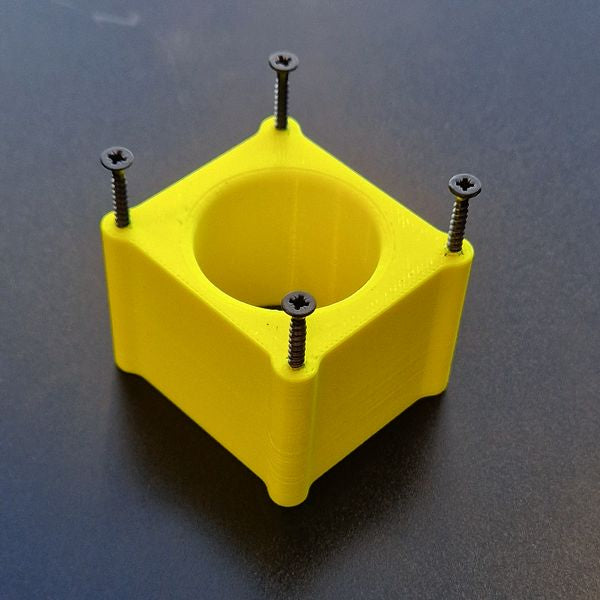

  • 1 interface spacer, 38 mm thickness,
  • 4 retaining screws for the single or double plug base.

Note: The screws for securing the spacer to your vehicle's support are not provided, as these depend on the thickness of your support.

A maintenance service is available to ensure the maximum longevity of your equipment.
A bespoke service for specific integrations or the manufacturing of custom mounting interfaces is at your service; please do not hesitate to contact us.
MODE D'EMPLOI

Installing the CIE-460 Interface Spacer

  • Positioning
    After identifying the ideal location for installing your Drink base unit within your race car, position the CIE-460 interface spacer (pay attention to the orientation; it is not square).
  • Drilling:
    Mark the center points where it will be positioned using a Ø2mm drill bit through the spacer.
  • Fixing:
    Secure the interface using a minimum of four 3mm self-tapping screws. The screw engagement length into the CIE-460 spacer must be 15mm.
  • Mounting the base unit:

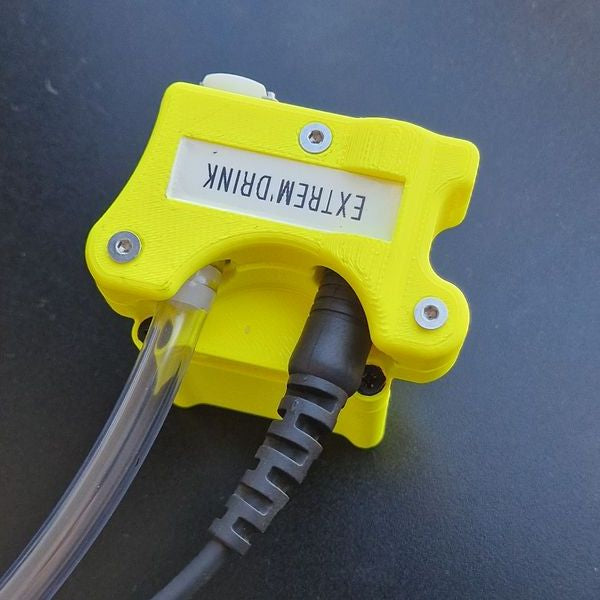

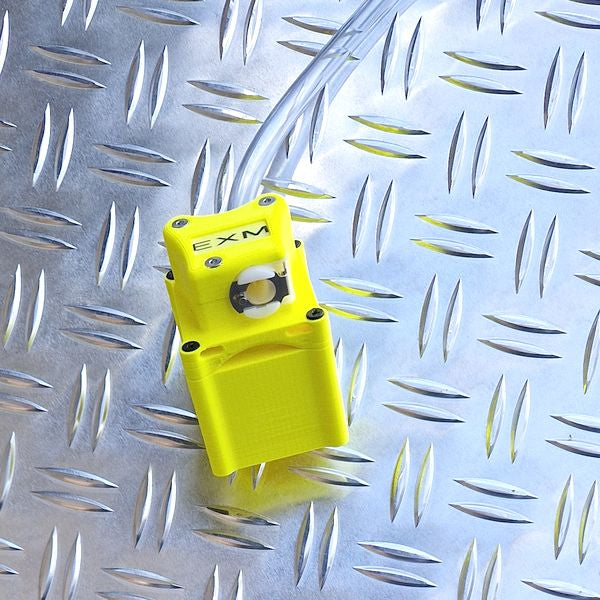

    Then, position the single or double plug base unit onto the interface using the 4 screws provided in the package.

Validation: Once the installation is complete, it is essential to perform a full in-car test in the driving position to validate the overall ergonomics before taking to the track.

The manufacturing time of our products is controlled.
In case of stock shortage or if you need a quantity greater than that usually available on the site, please contact us.
